Notas Control Plane Protection

A feature Control Plane Protection permite policiamento QoS do tráfego agregado no control-plane destinado ao router processor. Desta forma e possível ter granularidade no policiamento.
Esta funcionalidade adicionada ao Control Plane Protection inclui um traffic classifier, que interceta o tráfego e classifica-o em 3 categorias no control-plane. Foram também adicionadas as features port-filtering e queue-thresholding. O port-filtering permite policiar o tráfego destinado a portas closed ou nonlistened TCP/UDP ports, enquanto queue-thresholding limita o numero de pacotes permitidos por um protocolo no control-plane IP input queue.

 Beneficios do Control Plane Protection

  • Extends protection against DoS attacks at infrastructure routers by providing mechanism for finer policing granularity for control-plane traffic that allows you to rate-limit each type individually.
  • Provides a mechanism for early dropping of packets that are directed to closed or nonlistened IOS TCP/UDP ports.
  • Provides ability to limit protocol queue usage such that no single protocol flood can overwhelm the input interface.
  • Provides QoS control for packets that are destined to the control-plane of Cisco routers.
  • Provides ease of configuration for control plane policies using MQC Infrastructure.
  • Provides better platform reliability, security and availability.
  • Provides dedicated control-plane subinterface for aggregate, host, transit and cef-exception control-plane traffic processing.
  • Is highly flexible: permit, deny, rate-limit.
  • Provides CPU protection so it can be used for important jobs, such as routing.

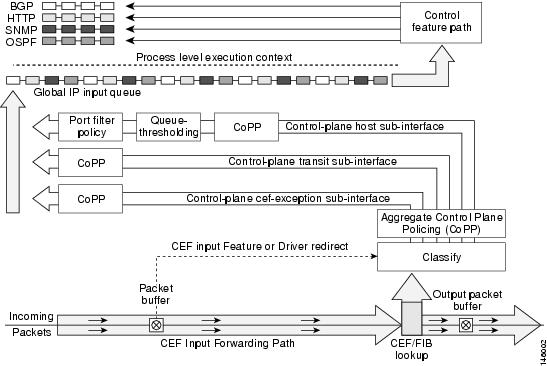

Control-plane Architecture with Control Plane Protection

Control Plane Policing

Control-plane Interface e Subinterfaces

O CoPP introduz o conceito de early rate-limiting protocol para tráfego especifico destinado ao processor aplicando QoS policies a interface aggregate control-plane. São disponibilizadas assim 3 control-plane subinterfaces adicionais sob o (aggregate) control-plane interface. Cada subinterface recebe e processa tráfego especifico do control-plane, estas são:

  • Control-plane host subinterface: Processa o tráfego destinado a uma das interfaces do router. Exemplos:tunnel termination traffic, management traffic ou routing protocols tais como: SSH, SNMP, internal BGP (iBGP), e EIGRP. CoPP, port-filtering e per-protocol queue thresholding protection features podem ser aplicadas nesta subinterface.

Nota: Pacotes Non-IP based Layer 2 protocol como ARP ou CDP são classificados como tráfego control-plane CEF-exception subinterface

  • Control-plane transit subinterface: Tráfego que atravessa o router, Nonterminating tunnels e um dos exemplos.E permitido aggregate policing para este tipo de tráfego
  • Control-plane CEF-exception subinterface: Recebe todo o tráfego redirecionado como resultado de uma input feature configurada no CEF packet forwarding path para process switching ou directly enqueued no control plane input queue by the interface driver (ARP, external BGP (eBGP), OSPF, LDP, Layer2 Keepalives, e todo o tráfego non-IP host). É permitido aggregate policing para este tipo de tráfego.



Passos para configurar o CoPP:

  1. Ativar o QOS globalmente usando o comando mls qos, de outra forma o processamento CoPP será feito via software em vez de por hardware
  2. Criar ACL para classificar o tráfego. O Permit permite o matching do tráfego, o Deny causa que o tráfego será avaliado pela próxima class map.
  3. Criar as Class maps e associar as ACLS, IP Precedence ou DSCP values
  4. Criar a policy map e associar as class maps
  5. Sob cada class na policy map, é assignada a largura de banda permitida e especificada a acção em caso de excesso. Quando o CoPP é implementado, ambas as acções podem ser definido o transmit. Após um período de monitorização, a largura de banda pode ser afinada e a acção de excesso definida como drop (excepto para os protocolos de routing)
  6. Assignar a policy-map ao control plane do router/switch

Notas:

1.The type, stack, and access-control keywords were added to support FPM.
2.The type, port-filter and queue-threshold keywords were added to support Control Plane Protection.

Exemplo 1:

Efectuar drop a todo o trafego destinado a portas “closed” ou “nonlistened” excepto o NTP

class-map type port-filter pf-class
match not port udp 123
match closed-ports

policy-map type port-filter pf-policy
class pf-class
log
drop

control-plane host
service-policy type port-filter input pf-policy

R3#telnet 192.168.20.2 99

R2#
*Mar  1 01:56:43.703: %CP-6-TCP: DROP TCP/UDP Portfilter  192.168.20.1(53223) -> 192.168.20.2(99)

R2#sh policy-map type port-filter control-plane all

Control Plane Host

Service-policy port-filter input: pf-policy

Class-map: pf-class (match-all)
16 packets, 960 bytes
5 minute offered rate 0 bps, drop rate 0 bps
Match: not  port udp 123
Match:  closed-ports
Match: not  port udp 23
drop
log

Class-map: class-default (match-any)
16 packets, 966 bytes
5 minute offered rate 0 bps, drop rate 0 bps
Match: any

R2#sh control-plane host open-ports
Active internet connections (servers and established)
Prot        Local Address      Foreign Address                  Service    State
tcp                 *:23                  *:0                   Telnet   LISTEN
udp    192.168.20.2:6500                  *:0        IP SLAs Responder   LISTEN
udp               *:1967                  *:0              RTR control   LISTEN

Exemplo 2:

Configurar o queue-threshold policy e limitar as seguintes queues:SNMP(50), Telnet(50) e restantes protocolos(150)

class-map type queue-threshold match-all qt-other-class
 match  host-protocols
class-map type queue-threshold match-all qt-telnet-class
match  protocol telnet
class-map type queue-threshold match-all qt-snmp-class
match  protocol snmp
!
policy-map type queue-threshold qt-policy
class qt-snmp-class
queue-limit 50
class qt-telnet-class
queue-limit 50
class qt-other-class
queue-limit 150

control-plane host
service-policy type queue-threshold input qt-policy

R3#telnet 192.168.20.2

R2#sh policy-map type queu control-plane all

queue-limit 50
queue-count 0     packets allowed/dropped 0/0
queue-limit 50
    queue-count 3     packets allowed/dropped 13/0
queue-limit 150
queue-count 0     packets allowed/dropped 0/0
Control Plane Host

Service-policy queue-threshold input: qt-policy

Class-map: qt-snmp-class (match-all)
0 packets, 0 bytes
5 minute offered rate 0 bps, drop rate 0 bps
Match:  protocol snmp

    Class-map: qt-telnet-class (match-all)
      13 packets, 786 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match:  protocol telnet

Class-map: qt-other-class (match-all)
0 packets, 0 bytes
5 minute offered rate 0 bps, drop rate 0 bps
Match:  host-protocols

Class-map: class-default (match-any)
0 packets, 0 bytes
5 minute offered rate 0 bps, drop rate 0 bps
Match: any
