Dell Networking OS10 using GNS3

Dell EMC Networking OS10 combines the best of Linux, open computing, and networking to advance open networking disaggregation. OS10 is a transformational software platform which provides networking hardware abstraction through a common set of APIs.
You can enable consistency across compute and network resources for your system operator (sysops) groups that require server-like manageability, as well as leverage your existing network con€guration.
You can simulate OS10 devices using OS10 VM appliances. The OS10 VM appliances execute the same software deployed on OS10-enabled hardware devices, with the exception of the hardware abstraction layer. The OS10 VM hardware abstraction layer simulates hardware devices in a VM environment.

All CLI commands as well as RESTCONF and SNMP interfaces are available in the OS10 simulation environment. You can build sandbox environments to learn open networking concepts, and prototype network operations and scripts risk-free.

Dell OS10

OS10 simulation features

All OS10 CLI commands and north-bound interfaces (RESTCONF, SNMP) are available including:

  • System management (SSH, AAA, DHCP, and so on)
  • Management port

L3 data plane and control plane (using Linux functionality)

Partial support for L2 data plane and control plane (using Linux functionality):

  • LACP
  • VLAN
  • LLDP
  • VLT

OS10 feature limitations

  • No ACL or QoS support (NPU is not available) — ACL and QoS CLI commands are available (but have no effect on trafc)
  • Limited L2 functionality (NPU is not available on simulator) — no spanning-tree control plane functionality
  • No breakout mode for simulated ports
  • Defaults to S6000-ON hardware platform simulation


  • Workstation or laptop with 16 GB RAM or larger recommended
  • 64-bit x86 CPU with 2 GHz or faster core speed (dual-core or larger recommended)
  • SDD with 64 GB available space
  • Virtualization environment — you can use either Windows, Linux, or VMware ESXi as a host system for the GNS3 Server VM environment
  • VMware ESXi server recommended for large network simulation




What is new on Cisco Packet Tracer 7.0

This new version came out with new features, devices and a lot’s of improvements. You can download the new version here.

HTTP Server Improvements

JavaScript and CSS support.
FTP server file import inside Packet Tracer.
HTTP and FTP linked file management support.
Registration Server for IoT.

Physical Workspace

Network topology creation.
Device deployment.
Cabling of devices.
Wiring closet device deployment and cabling.
Unplugging and moving of cables.
Simulation mode support.
Generic Container Creator.
Volume control for containers.
Icon tool for background.

Other Changes

SPAN/RSPAN support.
L2NAT support.
PTP support.
REP support.
LLDP support.
IOx support.
DHCP Server Port-Based Address Allocation support.
Improved PoE support.
Improved copy and paste support.
Piping support in show commands.
IoT Switch protocol support.
Modifiable Environment demonstrating IoT changes.
Python, JavaScript, Blocky programming added for IoT usage.

New Devices

819IOX Routers
829 Router
1240 Router
IE 2000 switch
Microcontroller Unit (MCU).
Single Board Computer (SBC).
Generic Thing.
IoT HomeGateway
IoT Actuators, Sensors, and Smart Devices.

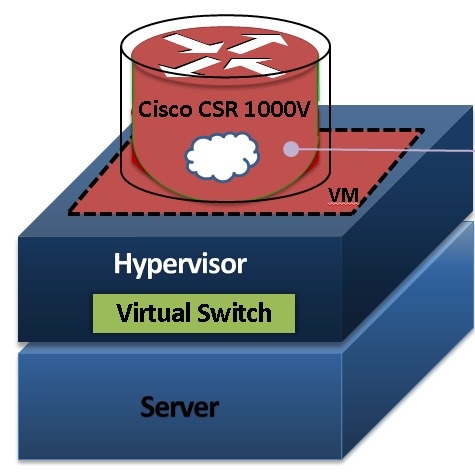

Setup Cisco CSR 1000v

Setup a Cisco CSR 1000v is not much different from i’ve explained with IOS-XRv. This product runs IOS-XE image which is great for my CCIE SP studies. I have in my lab 10 of them using 3.12S, this version has a major change regarding Licensing.

Evaluation Licenses—Cisco IOS XE 3.12S and Earlier

Prior to the Cisco IOS XE 3.13S release, the Cisco CSR 1000V came bundled with a 60-day evaluation license included with the software image, providing:

  • Premium technology package features
  • 50 Mbps maximum throughput

The license is activated by entering the license boot level command and rebooting the router.

When the 60-day evaluation license expires, the maximum throughput reverts to 2.5 Mbps and to the Standard feature set upon reload.

Evaluation Licenses—Cisco IOS XE 3.13S and Later

Beginning with the Cisco IOS XE 3.13S release, the CSR 1000V boots by default with the following features:

  • AX technology package features
  • 100 Kbps maximum throughput

Evaluation License Options

Evaluation licenses valid for 60 days are available at the Cisco licensing portal.

The evaluation license options enable test driving additional technology packages and higher throughputs. (The throughputs available through evaluation licenses are the highest supported throughput levels for the package type.)

  • IPBase Technology package, 10 Gbps
  • SEC Technology package, 5 Gbps
  • APP Technology package, 5 Gbps
  • AX Technology package, 2.5 Gbps
  • 1000 broadband sessions
  • 2 GB memory upgrade



Installation Process….

csr1000v_3 csr1000v_5 csr1000v_6 csr1000v_7

Configuration Options:

  • small—Deploy CSR with: 1 vCPU, 4 GB RAM, 3 vNICs
  • medium—Deploy CSR with: 2 vCPU, 4 GB RAM, 3 vNICs
  • large—Deploy CSR with: 4 vCPU, 4 GB RAM, 3 vNICs
  • xlarge—Deploy CSR with: 4 vCPU, 8 GB RAM, 3 vNICs


  • csr1000v_8 csr1000v_9 csr1000v_10 csr1000v_12 csr1000v_13 csr1000v_14 csr1000v_15

Warning: After deployed, you may have to edit the .vmx file since you can edit it only using vSphere Web client.


CSR-1#show version
Cisco IOS XE Software, Version 03.12.00.S – Standard Support Release
Cisco IOS Software, CSR1000V Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 15.4(2)S, RELEASE SOFTWARE (fc2)
Technical Support:
Copyright (c) 1986-2014 by Cisco Systems, Inc.
Compiled Wed 26-Mar-14 21:09 by mcpreCisco IOS-XE software, Copyright (c) 2005-2014 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License (“GPL”) Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or “License Notice” file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.ROM: IOS-XE ROMMONCSR-1 uptime is 5 days, 22 hours, 21 minutes
Uptime for this control processor is 5 days, 22 hours, 24 minutes
System returned to ROM by reload
System image file is “bootflash:packages.conf”
Last reload reason: <NULL>This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found at: you require further assistance please contact us by sending email to
License Level: limited
License Type: Default. No valid license found.
Next reload license Level: limited
cisco CSR1000V (VXE) processor with 804580K/6147K bytes of memory.
Processor board ID 97XCI7FQG1X
3 Gigabit Ethernet interfaces
32768K bytes of non-volatile configuration memory.
3145728K bytes of physical memory.
7774207K bytes of virtual hard disk at bootflash:.Configuration register is 0x2102
CSR-1#show license
Index 1 Feature: premium
Index 2 Feature: advanced
Index 3 Feature: standard
Index 4 Feature: limited
Index 5 Feature: adv_10M
Index 6 Feature: adv_25M
Index 7 Feature: adv_50M
Index 8 Feature: adv_100M
Index 9 Feature: adv_250M
Index 10 Feature: adv_500M
Index 11 Feature: adv_1G
Index 12 Feature: adv_2500M
Index 13 Feature: adv_5G
Index 14 Feature: adv_10G
Index 15 Feature: csr1kv_internal_test
Index 16 Feature: hseck9
Index 17 Feature: internal_service
Index 18 Feature: prem_10M
Index 19 Feature: prem_25M
Index 20 Feature: prem_50M
Index 21 Feature: prem_100M
Index 22 Feature: prem_250M
Index 23 Feature: prem_500M
Index 24 Feature: prem_500M_8G
Index 25 Feature: prem_1G
Index 26 Feature: prem_1G_16G
Index 27 Feature: prem_2500M
Index 28 Feature: prem_5G
Index 29 Feature: prem_10G
Index 30 Feature: prem_eval
Period left: Not Activated
License Type: Evaluation
License State: Active, Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 31 Feature: std_10M
Index 32 Feature: std_25M
Index 33 Feature: std_50M
Index 34 Feature: std_100M
Index 35 Feature: std_250M
Index 36 Feature: std_500M
Index 37 Feature: std_1G
Index 38 Feature: std_2500M
Index 39 Feature: std_5G
Index 40 Feature: std_10G
Index 41 Feature: stingray

Activate Premium License

CSR-1(config)#license boot level premium
BY ALL THE TERMS SET FORTH HEREIN.Use of this product feature requires an additional license from Cisco,
together with an additional payment. You may use this product feature
on an evaluation basis, without payment to Cisco, for 60 days. Your use
of the product, including during the 60 day evaluation period, is
subject to the Cisco end user license agreement
If you use the product feature beyond the 60 day evaluation period, you
must submit the appropriate payment to Cisco for the license. After the
60 day evaluation period, your use of the product feature will be
governed solely by the Cisco end user license agreement (link above),
together with any supplements relating to such product feature. The
above applies even if the evaluation license is not automatically
terminated and you do not receive any notice of the expiration of the
evaluation period. It is your responsibility to determine when the
evaluation period is complete and you are required to make payment to
Cisco for your use of the product feature beyond the evaluation period.Your acceptance of this agreement for the software features on one
product shall be deemed your acceptance with respect to all such
software on all Cisco products you purchase which includes the same
software. (The foregoing notwithstanding, you must purchase a license
for each software feature you use past the 60 days evaluation period,
so that if you enable a software feature on 1000 devices, you must
purchase 1000 licenses for use past the 60 day evaluation period.)Activation of the software command line interface will be evidence of
your acceptance of this agreement.ACCEPT? (yes/[no]): yes
% use ‘write’ command to make license boot config take effect on next boot

CSR-1(config)#do wr
Building configuration…
CSR-1(config)#do reload
Proceed with reload? [confirm]

After Reboot make sure license was activated

CSR-1#show license
Index 30 Feature: prem_eval
Period left: 8 weeks 3 days
Period Used: 10 minutes 42 seconds
License Type: Evaluation
License State: Active, In Use
License Count: Non-Counted
License Priority: Low

What were you looking? MPLS? OTV? VPN IPsec? LISP? Multicast? VxLAN?

Configure commands:
aaa Authentication, Authorization and Accounting.
access-list Add an access list entry
accounting Policy accounting feature
alg ALG configuration commands
alias Create command alias
alps Configure Airline Protocol Support
ancp Configure ANCP
apollo Apollo global configuration commands
appfw Configure the Application Firewall policy
appletalk Appletalk global configuration commands
arap Appletalk Remote Access Protocol
archive Archive the configuration
arp Set a static ARP entry
async-bootp Modify system bootp parameters
auto Configure Automation
banner Define a login banner
bba-group Configure BBA Group
beep Configure BEEP (Blocks Extensible Exchange Protocol)
bfd BFD configuration commands
bfd-template BFD template configuration
boot Modify system boot parameters
bridge Bridge Group.
bridge-domain Bridge-domain global configuration commands
bstun BSTUN global configuration commands
buffers Adjust system buffer pool parameters
bulkstat Bulkstat Application
busy-message Display message when connection to host fails
call Configure Call parameters
call-home Enter call-home configuration mode
cdp Global CDP configuration subcommands
cef Cisco Express Forwarding
chat-script Define a modem chat script
class-map Configure CPL Class Map
clns Global CLNS configuration subcommands
clock Configure time-of-day clock
cns CNS agents
collector Define a Collector
config-register Define the configuration register
configuration Configuration access
connect cross-connect two interfaces
control-plane Configure control plane services
cops Common Open Policy Service (COPS)
crypto Encryption module
cts Cisco Trusted Security commands
decnet Global DECnet configuration subcommands
default Set a command to its defaults
default-value Default character-bits values
define interface range macro definition
device-sensor IOS Sensor Commands
diagnostic Configure diagnostic information
dialer Dialer commands
dialer-list Create a dialer list entry
dnsix-dmdp Provide DMDP service for DNSIX
dnsix-nat Provide DNSIX service for audit trails
do-exec To run exec commands in config mode
downward-compatible-config Generate a configuration compatible with older software
eap EAP Global Configuration Commands
enable Modify enable password parameters
end Exit from configure mode
ethernet Ethernet configuration
event Event related configuration commands
exception Exception handling
exit Exit from configure mode
facility-alarm Configure facility alarms
fhrp Configure First Hop Redundancy Protocols
file Adjust file system parameters
flow Global Flow configuration subcommands
format Format the output
frame-relay global frame relay configuration commands
glbp Global GLBP configuration commands
global-address-family Enter address-family base routing topology mode
gtp Enable GTP Gn’
help Description of the interactive help system
hostname Set system’s network name
hw-module Control of individual components in the system
id-manager ID Pool Manager
ingress-class-map Ingress Classification Class-map
interface Select an interface to configure
ip Global IP configuration subcommands
ipc Configure IPC system
ipv6 Global IPv6 configuration commands
isis Global ISIS configuration subcommands
issu ISSU config commands
kerberos Configure Kerberos
key Key management
keymap Define a new keymap
kron Kron interval Facility
l2 Layer 2 configuration
l2tp Layer 2 Tunneling Protocol (L2TP) parameters
l2tp-class l2tp-class configuration
l2vpn Layer2 VPN commands
l3vpn l3vpn encapsulation ip commands
lacp LACP configuration
lat DEC Local Area Transport (LAT) transmission protocol
li-view LI View
license Configure license features
line Configure a terminal line
lldp Global LLDP configuration subcommands
lnm IBM Lan Manager
load Load Protocol
locaddr-priority-list Establish queueing priorities based on LU address
location Global location configuration commands
logging Modify message logging facilities
login Enable secure login checking
login-string Define a host-specific login string
mac Global MAC configuration subcommands
map-class Configure static map class
map-list Configure static map list
mcsa Configure mcsa
mediatrace Mediatrace Application
memory Configure memory management
menu Define a user-interface menu
metadata Metadata Application
modemcap Modem Capabilities database
monitor Monitoring different system events
mop Configure the DEC MOP Server
mpls Configure MPLS parameters
multilink PPP multilink global configuration
mvr Enable/Disable MVR on the switch
nat64 NAT64 configuration commands
ncia Native Client Interface Architecture
netbios NETBIOS access control filtering
netconf Configure NETCONF
nmsp NMSP configuration commands
no Negate a command or set its defaults
ntp Configure NTP
object-group Configure ACL Object Group
onep ONEP functionality
otv Configure OTV information
parameter-map parameter map
parser Configure parser
password Configure encryption password (key)
performance Global Performance monitor configuration
pfr Performance Routing configuration submodes
pfr-map Create pfr-map and enter pfr-map command mode
platform platform specific configuration
pnp Configure PNP
policy-map Configure Policy Map
policy-peer External Policy Delegation(EPD) peer parameters
port-channel EtherChannel configuration
ppp PPP global configuration
pppoe PPPoE global configuration
privilege Command privilege parameters
process Configure process
process-max-time Maximum time for process to run before voluntarily relinquishing processor
prompt Set system’s prompt
pseudowire-class Pseudowire-class configuration
pseudowire-static-oam Static PW OAM configuration
pseudowire-tlv Global PW TLV configuration
qos Global QoS configuration subcommands
rbe Commands for Routing RFC 1483 Ethernet encapsulated packets
redirect Configure L4 redirect parameters
redundancy Enter redundancy mode
regexp regexp commands
remote-management Enable the remote managment
resource Configure Embedded Resource Manager (ERM)
resource-group Configure Resource Group settings
resume-string Define a host-specific resume string
rif Source-route RIF cache
rlogin Rlogin configuration commands
rmon Remote Monitoring
route-map Create route-map or enter route-map command mode
route-tag Route Tag
router Enable a routing process
rsrb RSRB LSAP/DSAP filtering
sampler Define a Sampler
sap-priority-list Establish queueing priorities based on SAP and/or MAC address(es)
sasl Configure SASL
scheduler Scheduler parameters
scripting Configure options for scripting languages
security Infra Security CLIs
service Modify use of network based services
service-insertion Service Insertion mode
service-list Enter the service list
service-policy Configure service-policy
service-routing Configure service-routing
service-routing Configure service-routing
sgbp SGBP Stack Group Bidding Protocol configuration
sgcp Enable Simple Gateway Control Protocol
sgi Configure SGI
shell Configure shell command
smrp Simple Multicast Routing Protocol configuration commands
sna Network Management Physical Unit Command
snmp Modify non engine SNMP parameters
snmp-server Modify SNMP engine parameters
sntp Configure SNTP
source-bridge Source-route bridging ring groups
spanning-tree Spanning Tree Subsystem
stacks Configure stacks
standby Global HSRP configuration commands
state-machine Define a TCP dispatch state machine
static-ipfrr Config static ip fast rerouting rules
stun STUN global configuration commands
subscriber Subscriber configuration
subscriber-policy Subscriber policy
tacacs-server Modify TACACS query parameters
tarp Global TARP configuration subcommands
template Select a template to configure
terminal-queue Terminal queue commands
tftp-server Provide TFTP service for netload requests
time-range Define time range entries
tn3270 tn3270 configuration command
track Object tracking configuration commands
translate Translate global configuration commands
transport Configure transport
transport-map Configure transport map
ttycap Define a new termcap
username Establish User Name Authentication
vc-group Define a Frame Relay VC group
vines VINES global configuration commands
virtual-profile Virtual Profile configuration
virtual-service Configure virtual service
virtual-template Virtual Template configuration
vlan VLAN configuration commands
vpdn Virtual Private Dialup Network
vpdn-group VPDN group configuration
vpdn-template vpdn-template configuration
vrf VRF commands
vrrp Global VRRP configuration commands
vrrs vrrs global command
vty-async Enable virtual async line configuration
vxlan Configure VxLAN information
wsma Configure Web Services Management Agents
x25 X.25 Level 3
x29 X29 commands
xconnect Xconnect config commands
xdr Configure XDR parameters
xremote Configure XRemote
zone FW with zoning
zone-pair Zone pair command

Finally i got it CCIE#47868

I started in January with a goal in mind, get my Magic Number on my last attempt because i wouldn´t try again (brute-force nooo….)
This is the most hard exams in Networking Industry, well i did not try JNCIE yet but i believe will be tricky for sure.

So this time my trip included the Lab exam in Brussels and holidays in Amsterdam, and probably this was the key to my success. The facilities in the LAB were good like last time, so no issues with keyboard or something else.

I was afraid of new section DIAG, because the examples gave by Cisco had a lot´s of information….And to read it i would need time, probably more, but depends obviously the complexity of the ticket. For those who are thinking to face the lab, take a look on the following docs:

I did the TS without problems, but skipped on first round 2 of them, after solve all the tickets i saw a strange behavior but i solved it.

Can you do the exam without stress/anxiety?

I think the answer is no for sure… I think on this attempt i was more stresses because was my third, so FAIL comes always in my mind, but i was more relaxed. Strange isn´s it?

Top 5 reasons to be an CCIE

-Recognized by Industry
-Belong to a specialized group of professionals
-Develop oriented skills
-Be an Expert in Networking field
-Job Work

I have learned a lot and improve my skills while i was studying, but having the CCIE does not mean i know everything!!!

I´m really proud to achieve my goal, because this involves a lot´s of hard work, no family time, friends, hobbies, etc for months.

So my number is CCIE#47868

Thank You

  • My wife to encourage me all the time even after fail
  • My father, sister and brother for support me
  • My friends who believed in me


Now i will have time to do what i did not do for the last months, but I will still blogging for sure.


Revision CCIE Service Provider Exam Topic Updates from v3.0 to v4.0

Cisco announced a new Exam for CCIE SP v4, this new exam will follow a new structure like the newest one CCIE R&S v5.

The last day to test for both the Written Exam v3.0 (350-029) and the Lab Exam v3.0 will be May 21, 2015.  Beginning May 22, 2015, the Written Exam v4.0 (400-201) and the Lab Exam v4.0 will be available for testing.



CCIE Service Provider Written Exam Version 4.0 (400-201)








**Clique para expandir/colapsar os objectivos em detalhe**

CCIE Service Provider Lab Exam Version 4.0


**Clique para expandir/colapsar os objectivos em detalhe**


  • P and PE role: ASR 9000 series running IOS-XR 5.2 Release
  • RR and CE role: ASR 1000 series running IOS-XE 3.13 (15.4S) Release
  • PE and CE role: Cisco 7600 series running IOS 15.4S Release
  • Access and Aggregation: ME 3600 series running IOS 15.4S Release

CCIE Service Provider Exam Topic Updates from v3.0 to v4.0

Written Exam Topics v4.0

Lab Exam Topics v4.0

Equipment List v4.0

% not enough space on flash to store vlan database. trying squeeze…

Durante um dos labs no gns3 deparei-me com este erro, e com um write mem resolvi o problema  :-D

Client(config)#vtp mode c
Setting device to VTP CLIENT mode.
% not enough space on flash to store vlan database. trying squeeze...
squeeze of flash complete
% not enough space on flash to store vlan database even after squeeze
Client(config)#do wr mem
Building configuration...
Client(config)#vtp mode c
Device mode already VTP CLIENT.

Qual a estratégia para o exame CCNP-TSHOOT?

Este exame é composto por 3 secções, os quais já descrevi aqui no blog. A minha preocupação eram os 13 tickets do Lab devido ao fator tempo, e não tanto as questões da 1ª e 2ª secções.

Notas para o Exame

  • Todos os tickets resumem-se a problemas de falta de conetividade entre o Cliente1 e o Servidor Web.
  • No Cliente1 apenas Ă© possĂ­vel executar comandos de ping/ipconfig
  • Todos os tickets sĂŁo totalmente independentes, ou seja, o Cliente1 pode ter IP no Ticket 1 e nĂŁo no Ticket 2 (misconfig DHCP)
  • Durante o exame nĂŁo Ă© necessário efetuar qualquer configuração, apenas indicar qual o equipamento causador do problema e a respetiva solução.

Estratégia antes do Exame

  • Configurar de raĂ­z a topologia no GNS3, permite ficar familiarizado com a mesma

Estratégia durante o Exame

  1. Verificar se o Cliente1 tem IP
  2. Verificar a existĂŞncia de conetividade entre o Cliente1 e o Gateway
  3. Verificar a existĂŞncia de conetividade entre o Cliente1 e os diferentes Routers (R1;R2;R3;R4)
  4. Verificar a existĂŞncia do routing do Servidor Web e a subnet do Cliente1 nos diversos Routers

Os tickets podem apresentar problemas relacionados com: HSRP, VLAN Allowed, Peering BGP, DHCP,  Routing Redistribute, Routing Authentication, VACL, NAT entre outras.

Encontram-se abaixo disponĂ­veis as topologias para o GNS3 e Packet-Tracer.

Topologia TSHOOT GNS3
Topologia TSHOOT Packet Tracer
